Smart Electronics SMD 5730 5630 LED circuit board Aluminum PCB

shared:
Products Description
Smart Electronics SMD 5730 5630 LED circuit board Aluminum PCB
5730 parameters:

Lamp bead power:
Single grain 0.5W Single lumen 50-60LM Single power supply 150ma Lamp beads voltage 3.2-3.5V Color temperature:
White light: 6000-6500K Warm white light: 3000-3200K

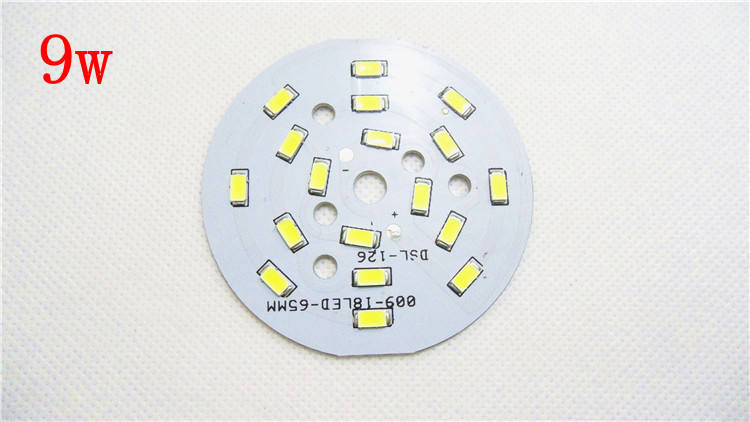

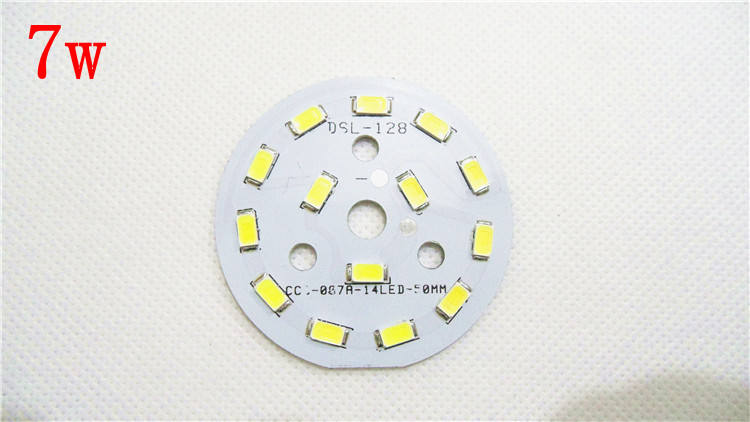

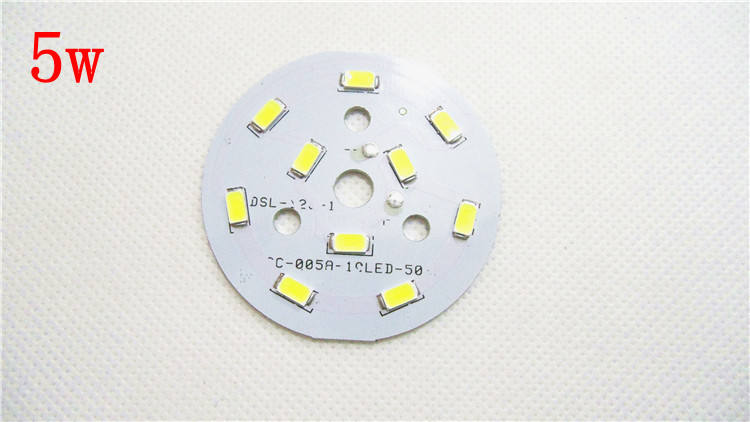

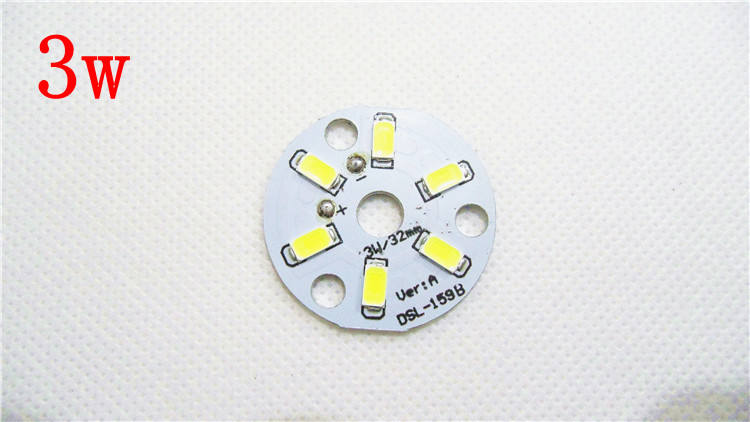

Dimensions:3W lamp board: φ32mm×1.4mm 6 pcs 5730 lamp beads 3 strings 2 parallel 300-360LM 5W lamp board: φ50mm×1.4mm 10 pcs of 5730 lamp beads 5 strings 2 parallel 500-600LM 7W lamp board: φ50mm×1.4mm 14 pcs 5730 lamp beads 7 series 2 parallel 700-840LM 9W light board: φ65mm×1.4mm 18 pcs of 5730 lights, 9 series and 2 parallel 900-1080LM 12W lamp board: φ65mm×1.4mm 24 pcs of 5730 lamp beads, 12 series and 2 parallel 1200-1440LM 12W lamp board: φ85mm×1.4mm 24 pcs 5730 lamp beads 12 series 2 parallel 1200-1440LM 15W lamp board: φ100mm×1.4mm 30 pcs of 5730 lamp beads 15 series 2 parallel 1500-1800LM 18W lamp board: φ100mm×1.4mm 36pcs 5730 lamp beads 18 series 2 parallel 1800-2160LM The diameter of each hole of the PCB light board is the same as that of the high-power bulb lamp, and the driving power used is exactly the same as the high-power power supplyProduct advantages:

More uniform light emission than high-power lamp beads, low heat generation, low light decay, easy assembly, and a must for high-end lamps. The product is suitable for, bulb lamp, down lamp
Details Images
We provide customized services. If you need customized PCB,Aluminum PCB or PCBA, please send us the relevant documents to quote. Please consult our salesman for details: )
Product Display
Company Profile
Exhibition
Hong Kong Electronics Fair is the world's largest comprehensive electronic products trade exhibition and a professional exhibition in the field of electronic components, components and production technology.

From October 13 to October 16, 2019, our company, as an exhibitor, attended the Hong Kong Electronics Fair (Autumn Edition).
Shipping
FAQ
1.Which type of PCBs do you expert in?

We are specialized in producing Singe-side PCB,Double-side PCB, Multilayer PCB,Aluminium PCB,Spray Tin PCB,Immersed Gold PCB, etc.

2.What is your Lead time?

Lead time is usually punctual here, usually 5-10 days for PCB sample, 10-15 days for mass production. For some special
situation,we can also advise customer in advance to avoid any inexpectation or loss at customer side.

3.What is your testing policy and how you controle the quality?

For sample, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by fixture, this will be more
faster. Due to there’s many steps to PCB production, we usually do inspection after every step.

4.What is your package?

With Inner vacuum package and out carton.

5.PCB shipment?

This is depend on customer, sometimes we ship through our forwarder, who is also the agency of DHL, TNT, UPS, Fedex, and so on.Our
forwarder can provide too much better freight cost than we get directly from those express enterprise.

6.What is your produce ability?

Our ability is average 30,000 square meters per month.

7.I only have the pcb sample, not pcb file, can you produce it for me?

Yes, we can copy file based on your sample, this file names gerber, and production then is accorded to gerber file.

8.Can you design gerber file?

We can design gerber file if customer can provide us schematic, schematic sample can also be provided if customer want.

9.What kind of PCB file format can you accept for production? What CAM software do you use?

We accept Gerber file for production. CAM350, GENESIS, UCAM, GC-CAM, V-2000.

10.Will you allow me to put several part number together into one panel?

Yes, this is usually happen in we factory, this way can help customers reduce some cost and to a certain degree, it can help reduce some assembly cost.

11.What is your minimum order quantity?

We have no limitation on MOQ, prototype, medium volume and large volume are all acceptable.

12.Will RoHS Lead-Free Custom Spec. Boards be marked with lead-free symbol?

Yes, can, but need customer to specify this requirement in file.

13.Are my design files safe when I submit them to you for manufacturing?

Any customer’s file will be protected very well here in our factory and we will not let any third party know. We can sign NDA with you.
