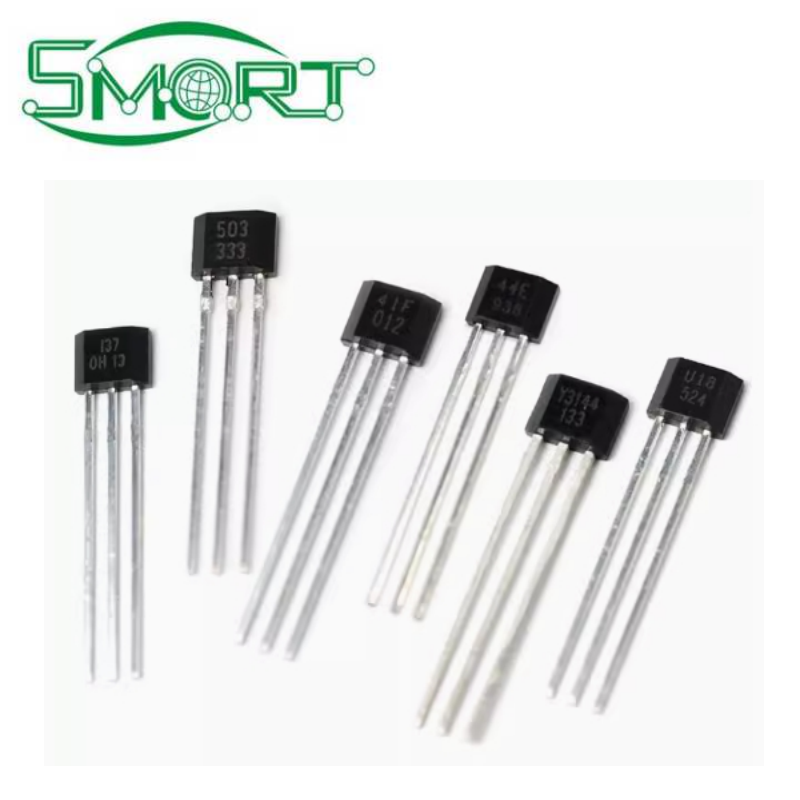

A3144E Hall element printing 44E

Y3144 (A3144) Hall element printing 3144

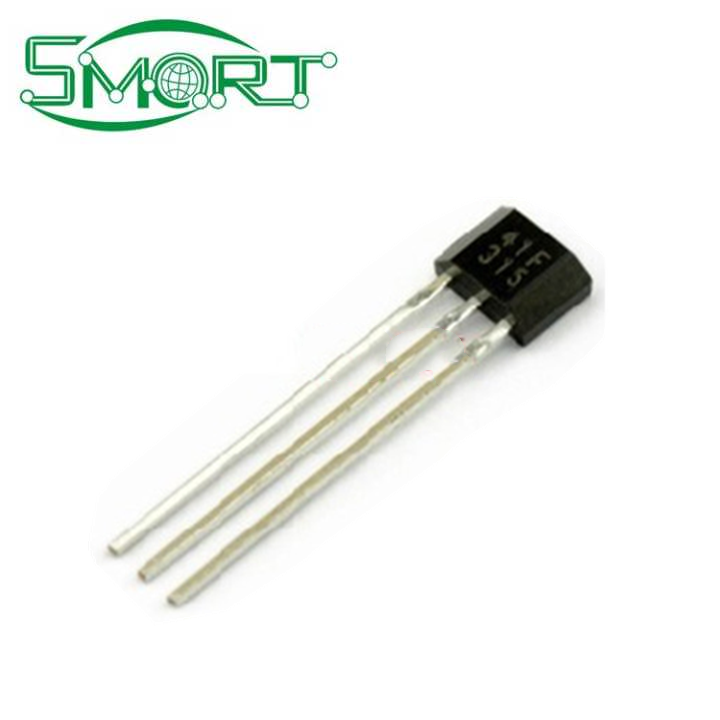

SH41/SS41F/S41 Hall element printing 41F

AH3503 503 Linear Hall Element Printing 503

OH137 Hall element printing 137

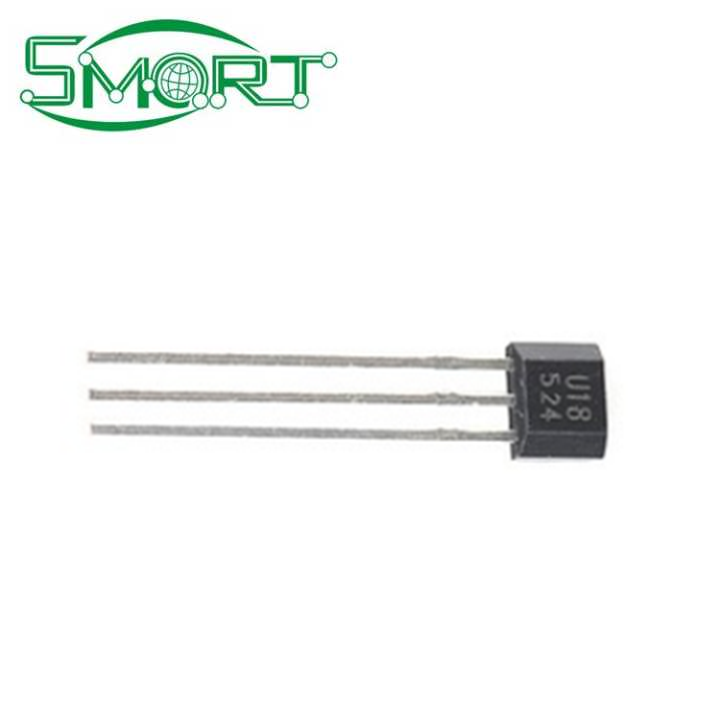

US1881 Hall element printing U1

SS495A linear Hall sensor

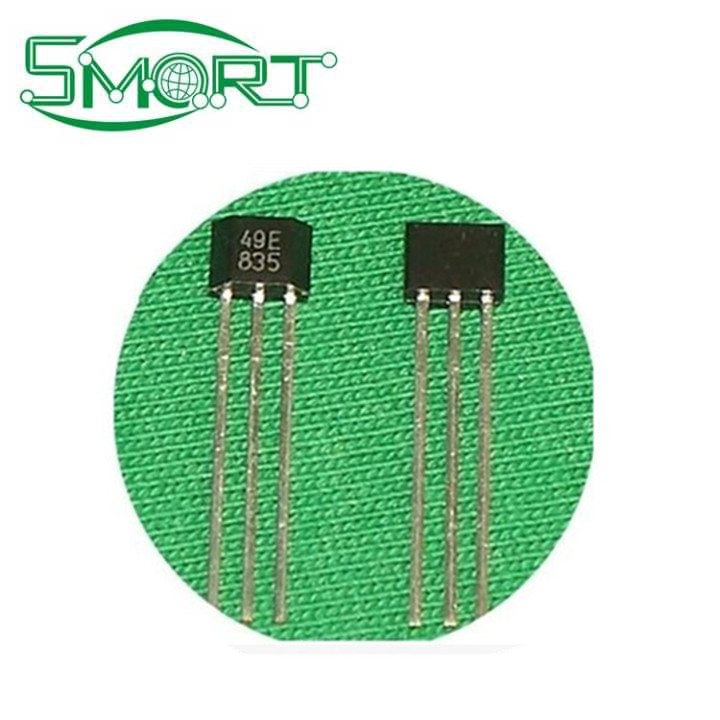

49E Hall Sensor OH49E S49E Hall Element SS49E Linear Hall Switch TO92S

Usage precautions

1. During installation, the mechanical stress acting on the Hall circuit should be minimized as much as possible

2. Under the condition of ensuring welding quality, try to keep the welding temperature low and time short as much as possible

MOQ=100PCS ，Please contact us for an updated quote

Applications

-Solid state switch

-Brushless DC motor commutation

-Speed sensing

-Position sensing

-Angular position sensing

-Current sensing

Product Categories



(please choose the one you need)

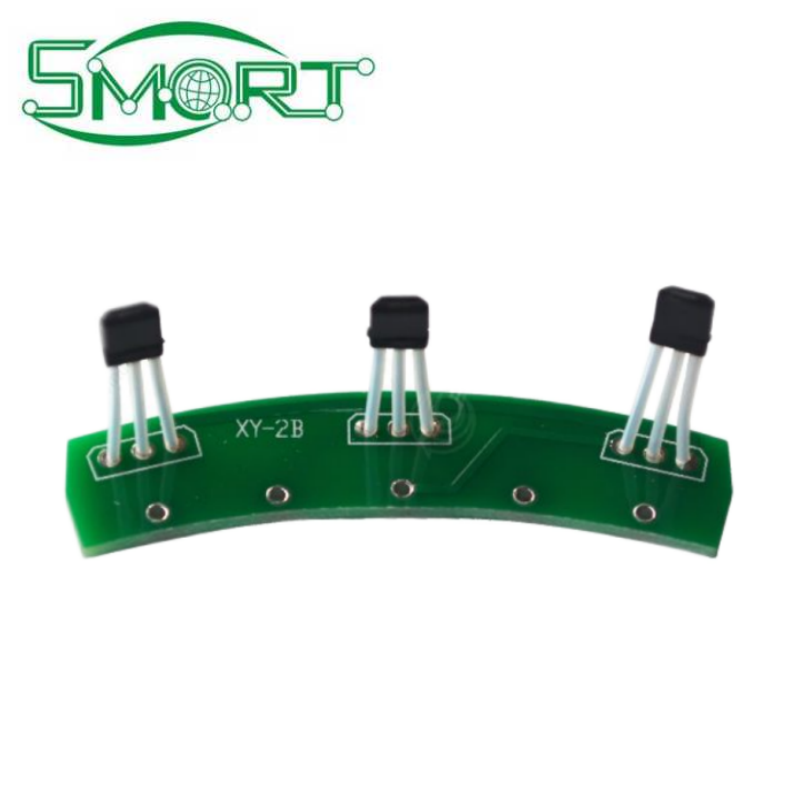

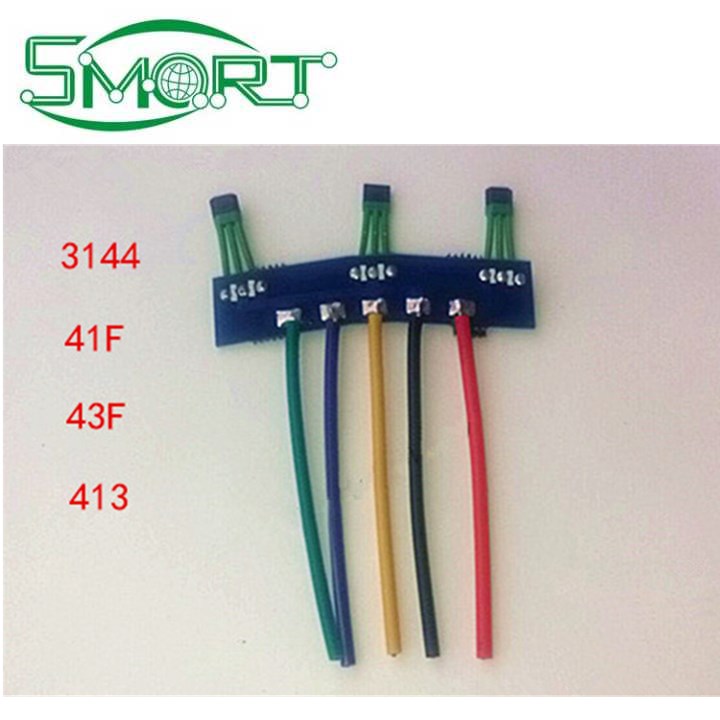

1. Two-wheeled 13A 120 degrees
2. Two-wheeled 413 120 degrees
3. Two-wheeled 41F 120 degrees
4. Two-wheeled 43F 120 degrees
5. Two-wheeled 3144 120 degrees
6. Two-wheeled 13A 60 degrees
7. Two-wheeled 413 60 degrees
8. Two-wheeled 41F 60 degrees
9. Two-wheeled 43F 60 degrees
10.Two-wheeled 3144 60 degrees

Condition:New

Supply Voltage:standar

Dissipation Power:standar

Operating Temperature:standar

Funtion:temperature sensor

The 49E is a Hall-effect integrated circuit. The output voltage changes with the change of the magnetic flux density, and it can detect the slight change of the magnetic field. It can be used to measure the motion of objects, distance, position sensor, etc. It is alsosuitable for use in harsh environments or heavily polluted conditions.

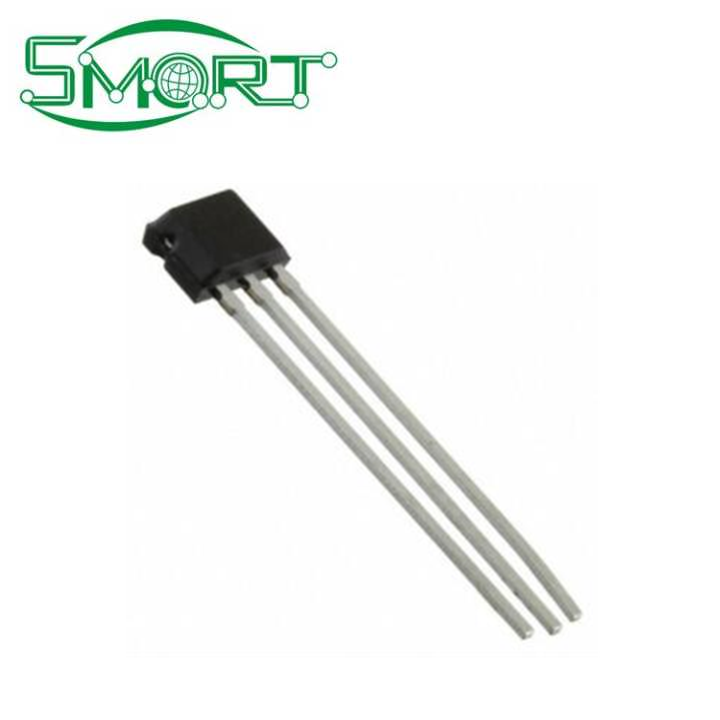

Model: HAL506 UA-2
Description: TO92-UA
Packaging: CutTape(CT) AlternatePackaging
Series: HAL®5xy
Part status: LastTimeBuy
Technology: Hall Effect
Voltage-power supply: 3.8V~24V
Current-power supply (maximum): 5.2mA
Current-output (maximum): 20mA
Output type: OpenDrain
Feature: TemperatureCompensated
Working temperature: -40°C~140°C (TJ)
Installation type: ThroughHole
Supplier device package: TO-92UA-2
Package/Shell: TO-226-3TO-92-3ShortBody
