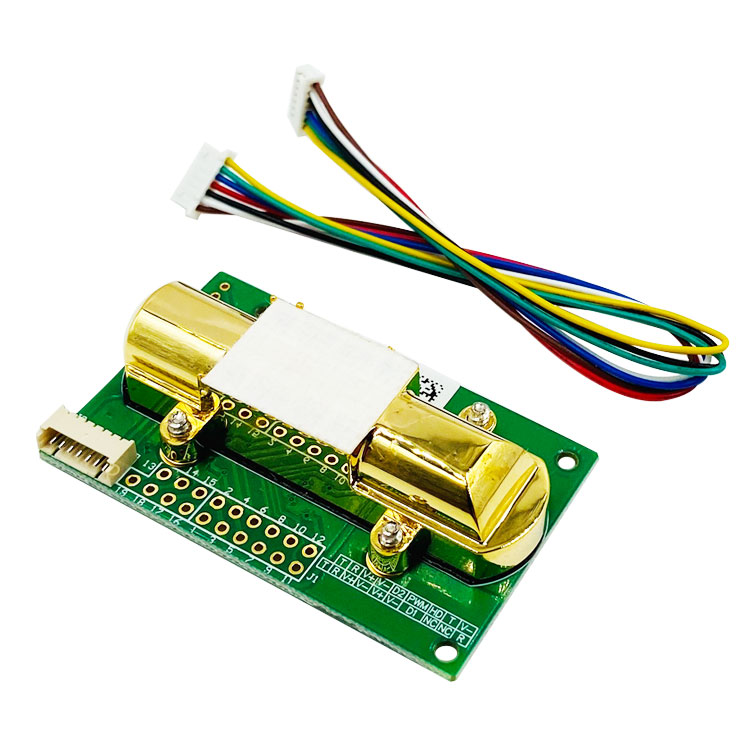

IC Brand new original MH-Z14 carbon dioxide sensor module CO2 detection air quality detection module for agricultural greenhouse

Products > Sensor Module > IC Brand new original MH-Z14 carbon dioxide sensor module CO2 detection air quality detection module for agricultural greenhouse

IC Brand new original MH-Z14 carbon dioxide sensor module CO2 detection air quality detection module for agricultural greenhouse

shared:
NDIR infrared carbon dioxide sensor module MH-Z14A serial port PWM analog output 0-5000ppm co2 sensor
Model Number
MH-Z14
Detection gas
carbon dioxide
Power supply voltage
DC4.5-5.5V
Average current
<60mA(@ 5V power supply)
Peak current
150mA (@ 5V power supply)
Interface level
3.3v (compatible with 5V)
Measurement range
optional within the range of 0-10000ppm
Humidity Range
0~90%RH
output signal
Serial port (UART) (TTL level)
PWM
Analog output (DAC) (0.4-2V) (0-2.5V)
Preheating time
3 minutes
Working temperature
0-50 ℃
Working humidity
0-95% RH (without condensation)
Weight
15g
Life
>5 years
