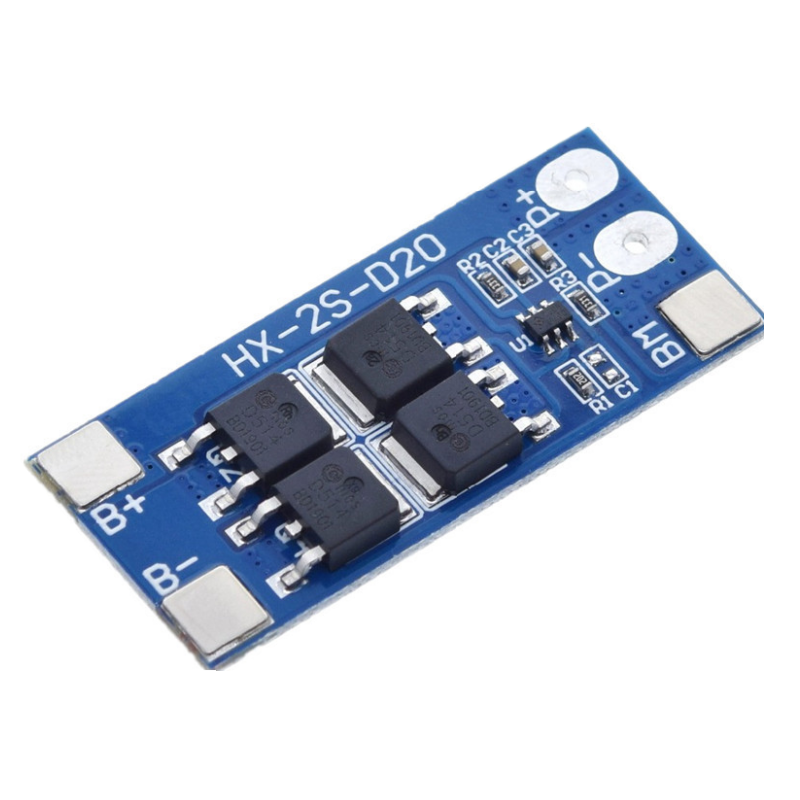

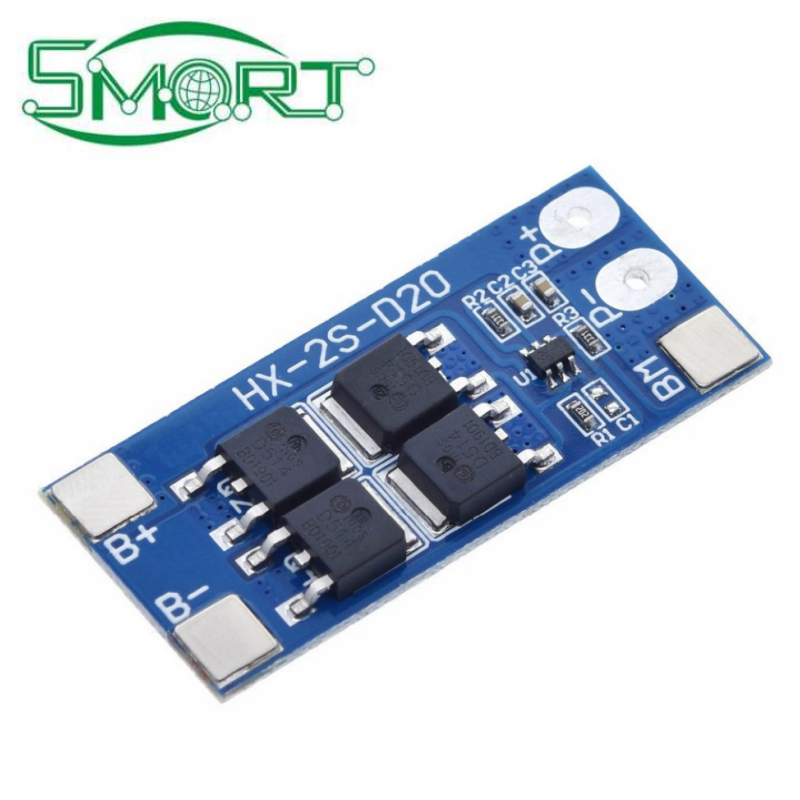

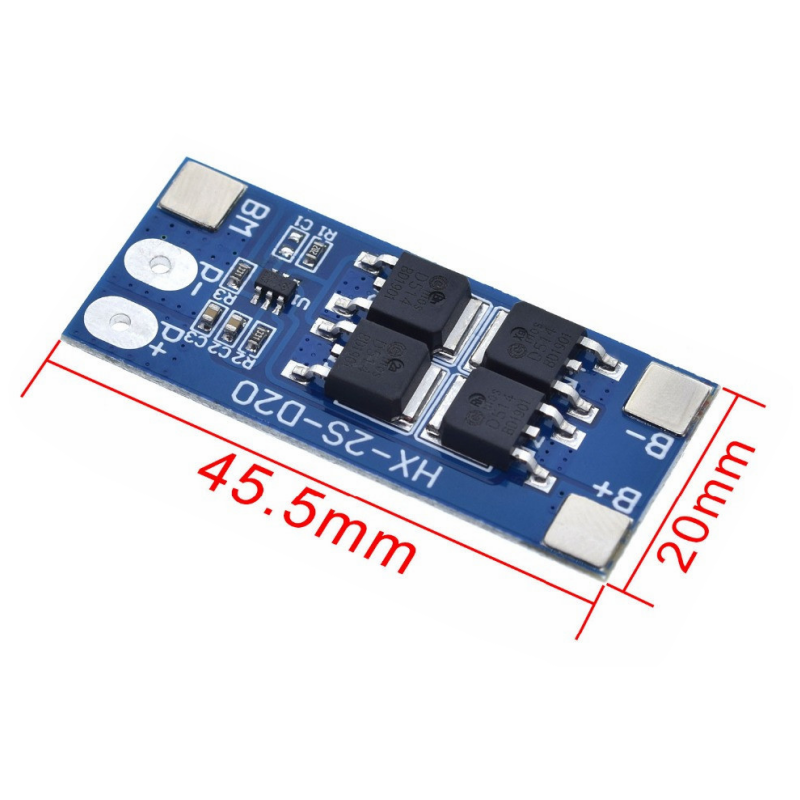

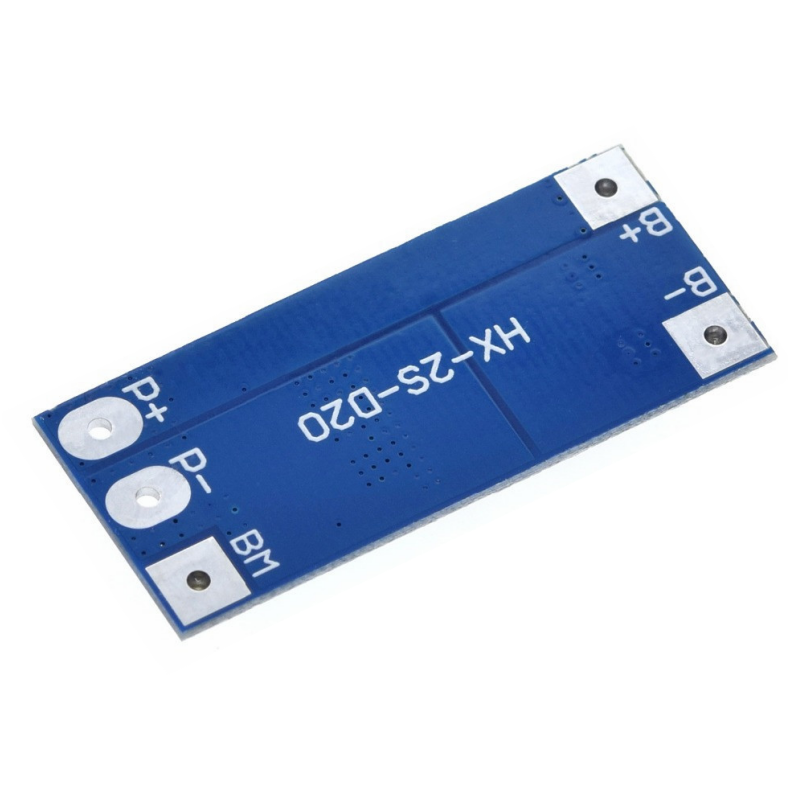

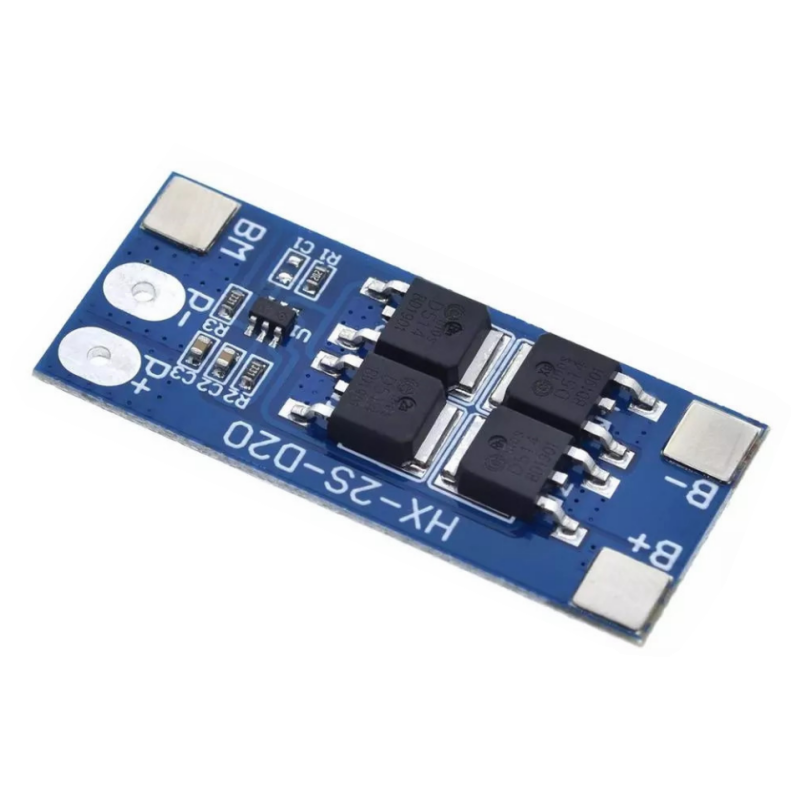

BMS 2S 8.4V 7.4V 8A 18650 Lithium Battery Charge Protection Board 18650 Equalizer Balanced BMS Charging PCB Module Overcharge Specification: Overcharge voltage range: 4.25-4.35v ± 0.05v Size: 40 * 17 * 3.5mm Over discharge voltage range: 2.5-3.0v ± 0.05v Maximum working current: 8A Working temperature: -40 --- + 50 ℃ Maximum instantaneous current: 10A Storage conditions: -40-- + 80 ° C Quiescent current: less than 10uA Effective life: more than 50000 hours Internal resistance: less than 300mΩ Short-circuit protection: can be protected, delay self-recovery after disconnecting the load Charging voltage: 8.4V-9V Equilibrium current: 58mA
|
