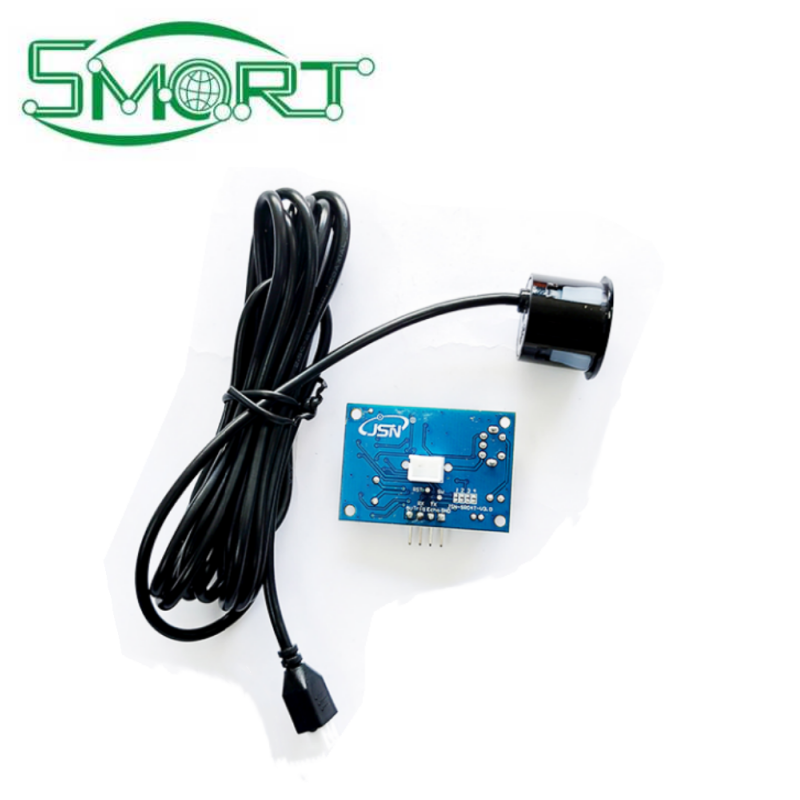

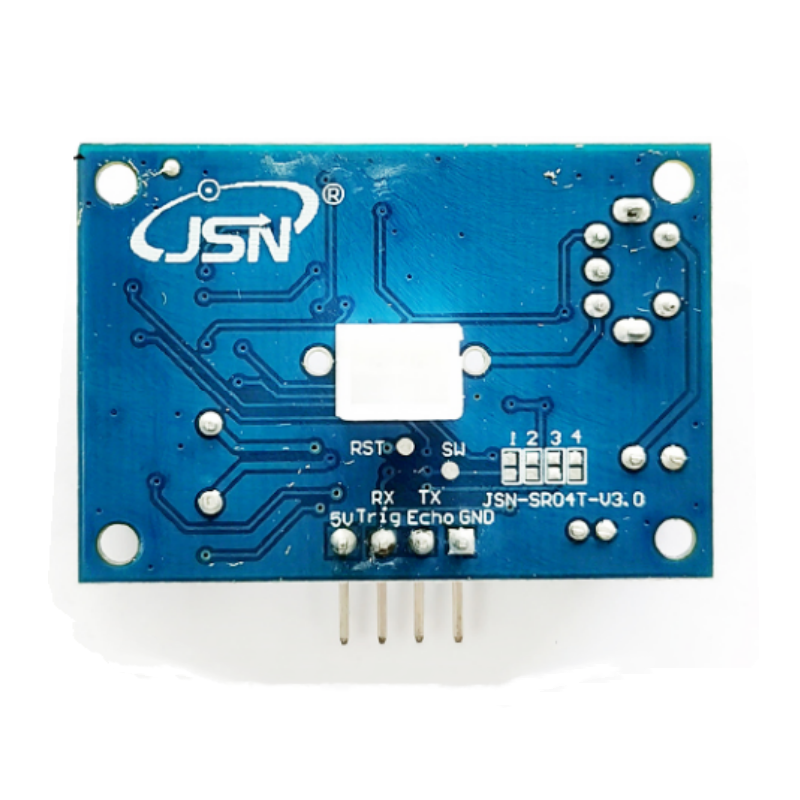

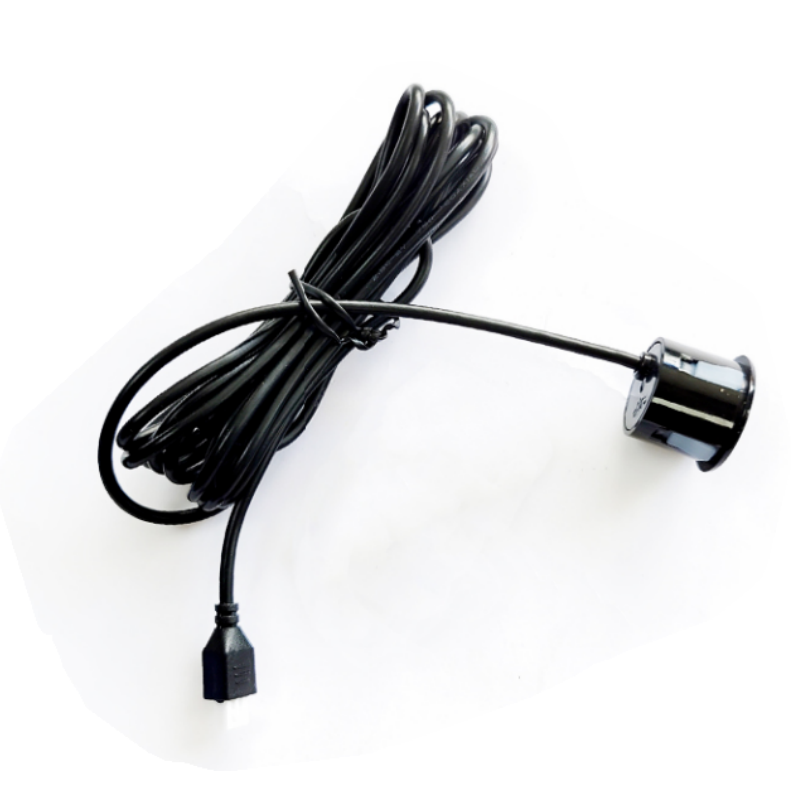

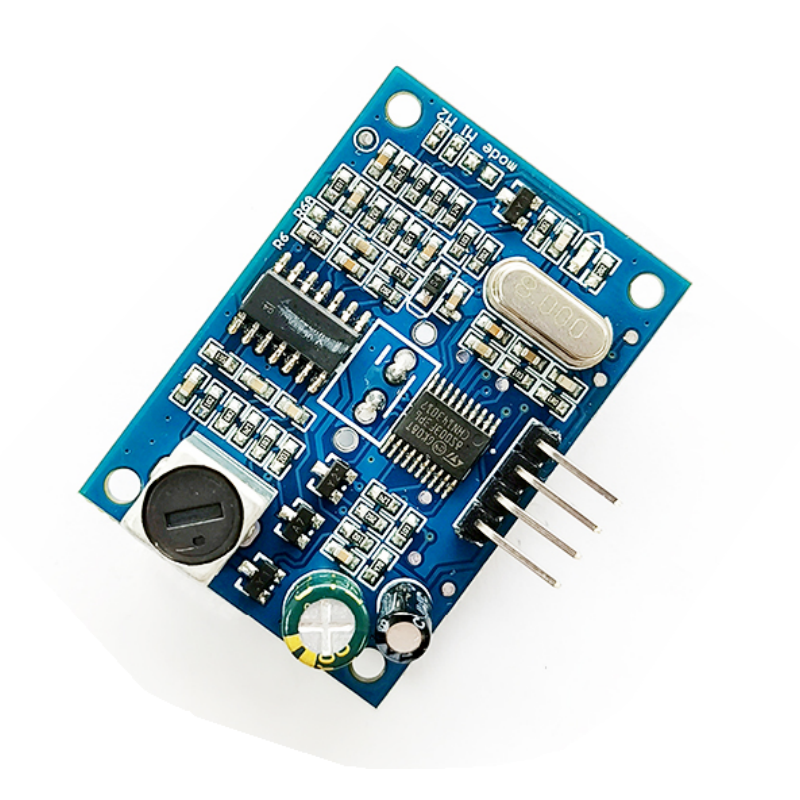

JSN-SR04T integrated ultrasonic ranging module, reversing radar, waterproof ultrasonic module

 Smart Electronics~JSN-SR04T Waterproof Ultrasonic Module Distance Measurement Sensor

• Description:

  Electrical parameters	JSN-SR04T	Operating voltage	DC 3 ~5.5V
  Quiescent current	< 8mA	Acoustic emission frequency	40khz
  Farthest range	600cm	Recent range	20cm
  Distance measurement accuracy	± 1cm	Resolution	1mm
  Measuring angle	75 degrees	Input trigger signal	TTL pulse above10uS
  Serial send command	0X55	Output echo signal	Output pulse width level signal, or TTL
  Product Size	L42 * W29 * H12 mm	Working temperature	-20 ℃ - +70 ℃

• Features:

• 1.Small size, easy to use


• 2.low power consumption


• 3.High accuracy


• 4.detection of blind spots, farther away


• 5.the output method of diversification, pulse width output, serial output

• Package Included:

• 1× JSN-SR04T Waterproof Ultrasonic Module
