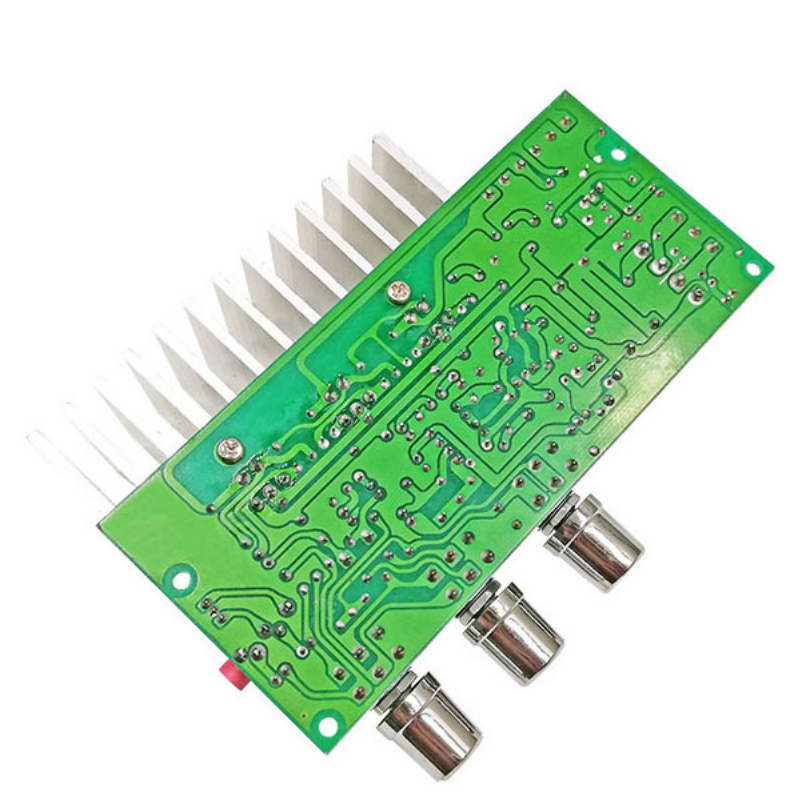

High power three channel amplifier module TDA2050+TDA2030 2.1 subwoofer amplifier circuit board

Products > Amplifier Board > High power three channel amplifier module TDA2050+TDA2030 2.1 subwoofer amplifier circuit board
    • 1
    • 2

High power three channel amplifier module TDA2050+TDA2030 2.1 subwoofer amplifier circuit board

shared：
Model Number
TDA2050+TDA2030
Type
Home Amplifier
Channels
3 (2.1)
PCB size
135*60mm
Finished product specification
135*85*40mm
Radiator specification
100*33*40mm
Shaft diameter
6mm
PCB mounting hole spacing
128mm *38mm
Net weight
230g
Working power supply
AC dual ac9-13.5v
Please click here to get more information !
Left and right channels: tda2030ax2, peak power: 18wx2, 2.5-4 inch, 48 euro 1030w full frequency horn is recommended. Bass output: tda2050ax1, peak power: 32W, 58 inch, 48 ohm 30-50 woofer is recommended. Working power supply: AC dual ac9-13.5v transformer. It is recommended to use dual AC12V transformer with power above 30W. Output power supply: dc12v15a, power supply for 12V decoding board. PCB Material: FR4 fiberglass board, Thickness: 1 mm PCB size: 135x60mm Finished product specification 135x85 × 40mm (length x width x height) Radiator specification: 100x33x40mm (length x width x height) Center distance between potentiometer shafts: 25mm, Shaft diameter: 6mm. PCB mounting hole spacing: 128mm (length) x38mm (width Net weight: 230g.
