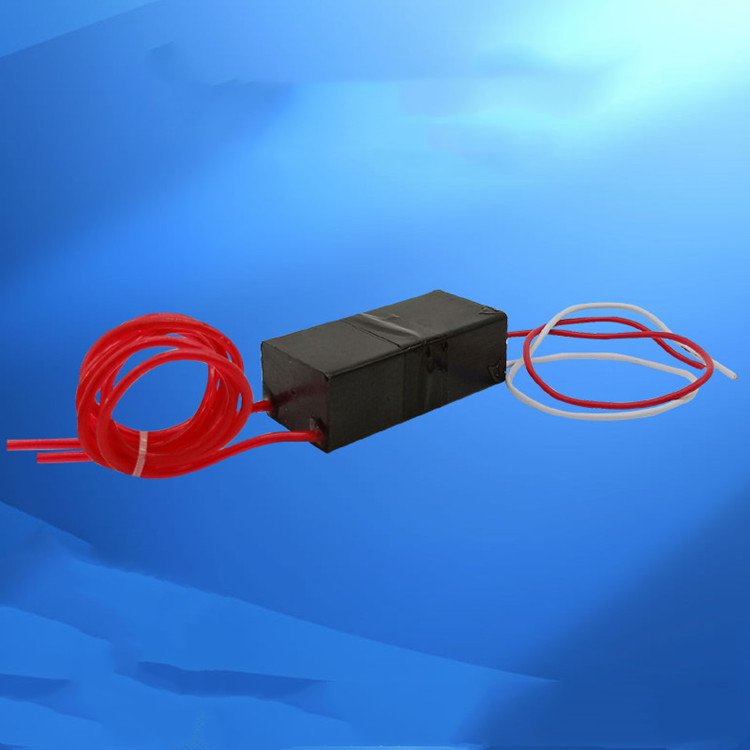

Wedding special igniter 12V DC universal high voltage generator pulse high voltage module output 60KV arc

shared:


This module is a high-voltage inverter for the science production, the finished module of the transformer/booster
After inputting DC6V-12V voltage at the input terminal, DC high voltage of tens of thousands of volts can be
obtained at the output end.

It can be used as a high-voltage source for Chinese-language experiments, electronic salutes,
electronic instruments, negative ion generators, and scientific small production.

The module is fabricated using the Tesla coil principle, which outputs high-voltage pulse current,
small size and high efficiency.

The peripheral circuit is simple (just need to connect the switch, the battery can be) the discharge intensity is fierce.

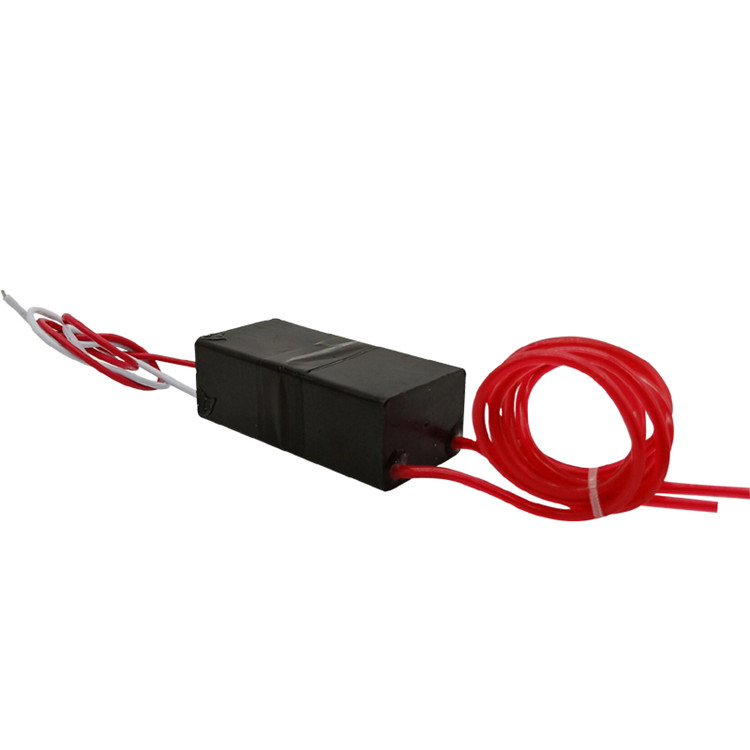

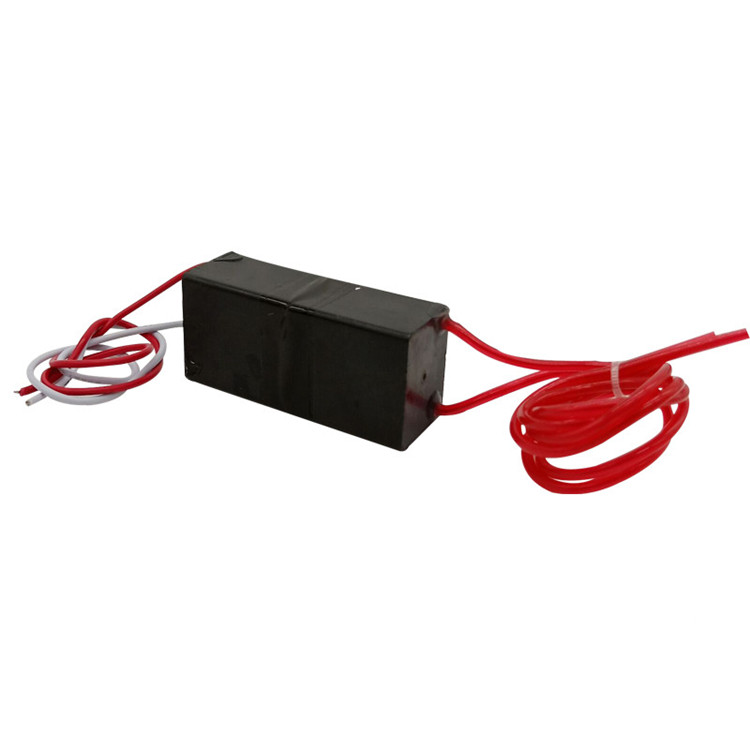

Module model:MCF-12-1
Physical volume:length 71mmX diameter 35mmX thickness 25mm
Input voltage:6V-12V
Input current:0.5A-1A
Input line length: about 26 cm
High voltage type: pulse DC type
Output voltage: about 60KV (please pay attention to safety when using)
Output current:0.5A-1A
Output line length: about 48 cm
High-voltage two-pole discharge distance: 1.5 cm - 2 cm
Features:universal high voltage package, input does not need to be divided into positive and negative.
About input power: NiCd/NiMH battery pack, 6V or 12V lead-acid battery, etc. (using 12V battery for best results)



Module usage notes:
1. The high-voltage module should avoid the use of high-voltage and no-load power. Before power-on,
the appropriate distance of the high-voltage line must be adjusted. The arc-pull distance of the high-voltage
line is proportional to the battery voltage and capacity used.

2. When testing the arc distance, it should be tested from short to long. When the power is on, it is forbidden
to exceed the longest arcing distance. Because the high voltage energy cannot be released, the module is easily damaged.

3. The power of the module is large, and the internal heat is not suitable, so it is not allowed to work for a long time.
4. The way to determine whether the battery capacity can drive the maximum output power is to measure the battery
voltage when the arc is pulled. If you are around 6V, you can output the maximum power.

5. The small-capacity lithium battery is connected in series of 7.2V. The voltage measured in the arcing state has
dropped to about 4V. The smaller the capacity, the lower the voltage is pulled. Therefore, it is recommended to use
more than 2000MA lithium battery, and it is better to have a battery with 4000MA or more
.
