TEC1-12720 20V 169W Thermoelectric Cooler Peltier 50X50mm

Products > Peltier > TEC1-12720 20V 169W Thermoelectric Cooler Peltier 50X50mm
    • 1
    • 2

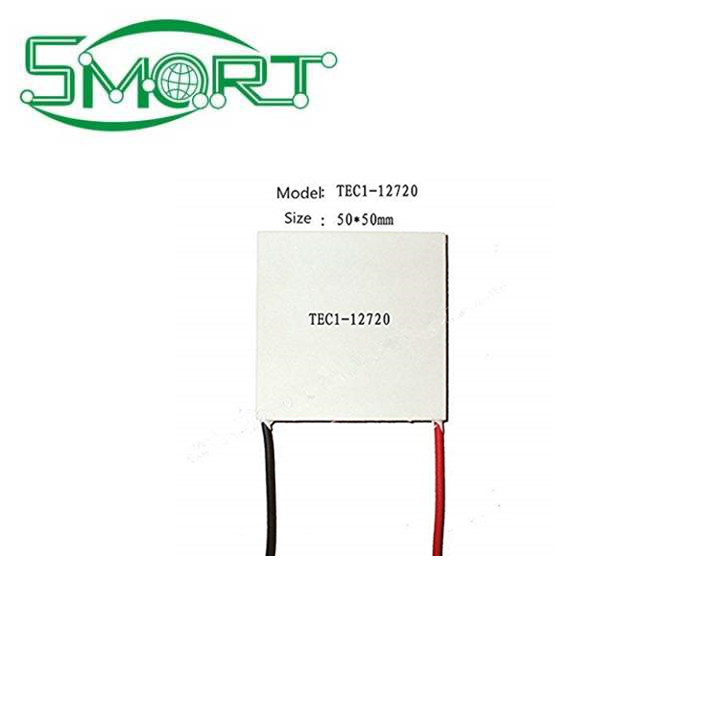

TEC1-12720 20V 169W Thermoelectric Cooler Peltier 50X50mm

Description:
​Tmax: 65℃ Vmax(V): 15V
Imax(A): 20A
Qmax(W): 169W
Dimensions: 50mm x 50mm x 3.4mm
Power cord: 150mm
shared：


Description:
Tmax: 65℃ Vmax(V): 15V
Imax(A): 20A
Qmax(W): 169W
Dimensions: 50mm x 50mm x 3.4mm
Power cord: 150mm
It can be used in CUP's/ Picnic cooler/ Drinks coolers/ Ice boxes/ Laser diodes/ CCD cameras and others.
Note: heat side requires heat sink all the time.
Package included: 1 X TEC1-12720 Thermoelectric Cooler Peltier 12V
Note: heat side requires heat sink all the time.
Testing which side is hot without heat sink can be done by connecting +12V or less and
disconnect very fast in less then 2 seconds; otherwise, the tile will be burnt inside.
Ship within 1-2 days by USPS.
Most items take 7-12 working days arrive.
