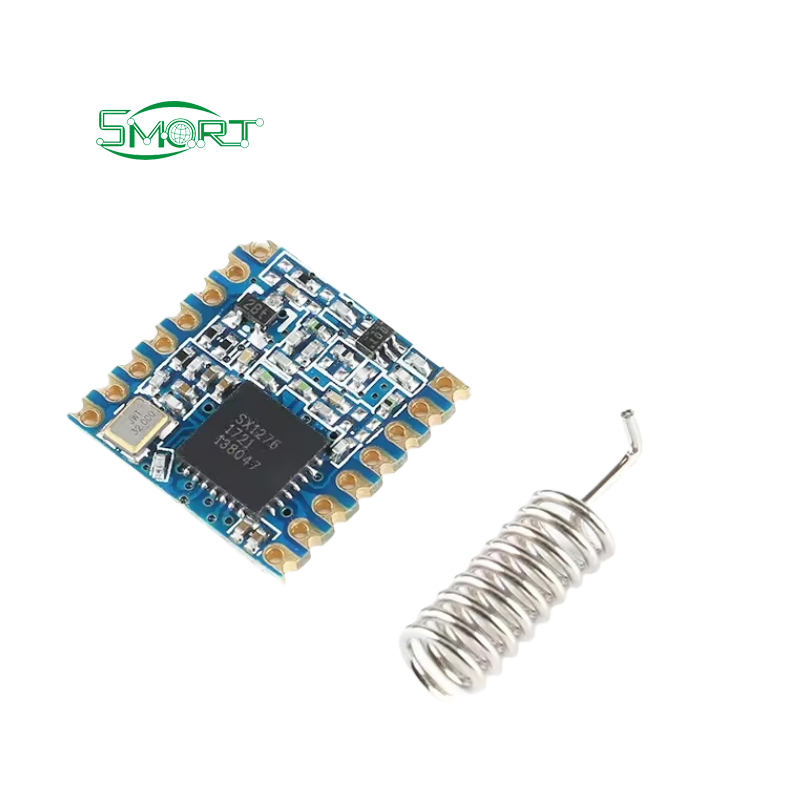

Smart Electronics SX1276 Wireless Spread Spectrum Module/LoRa Module/868MHz/915MHz Wireless Module

SX1276 Wireless Spread Spectrum Module/LoRa Module/868MHz/915MHz Wireless Module
shared：

Smart Electronics SX1276 Wireless Spread Spectrum Module/LoRa Module/

868MHz/915MHz Wireless Module

Frequency Band: 868MHz/915MHz
Output Power: 20dBm/100mW
Receiver Sensitivity: -139dBm@146dB
Modulation: LORA/GFSK

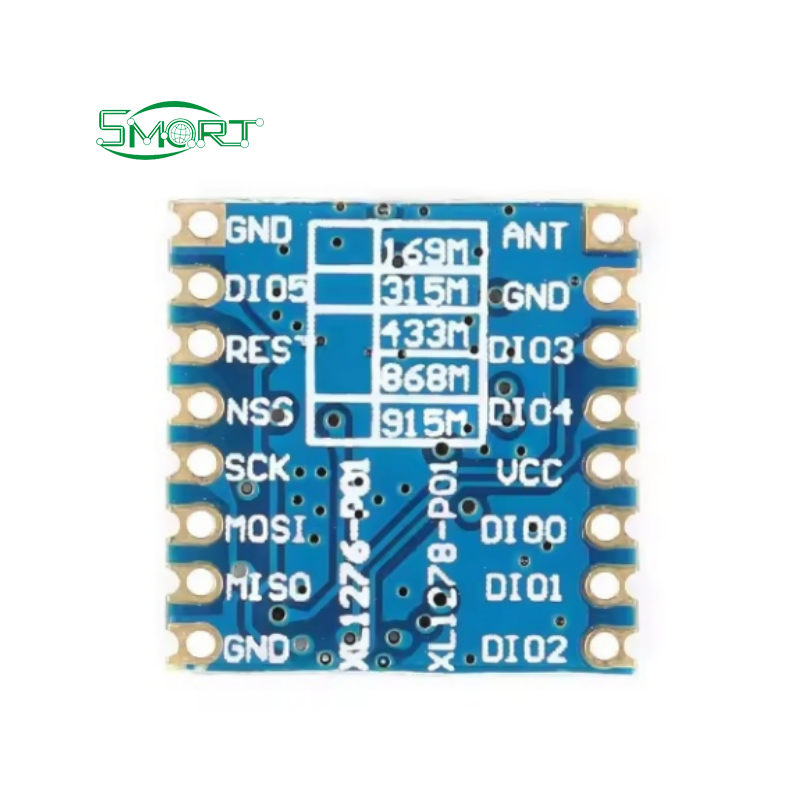

Data Interface: 4-wire SPI
Module Dimensions: 16.5×17mm, 1.27mm pin pitch
Transmit Current: 120mA@100mW/3.3V
Receive Current: 10mA/3.3V
Sleep Current: 0.2μA
Frequency Deviation: ±5kHz
