CP2102 module USB to TTL USB to serial port module UART STC downloader
Small common sense (very important):
TXD: sender, usually referred to as one's own sender, normal communication must be connected to another device's RXD.
RXD: The receiving end, usually represented as its own receiving end, must be connected to another device's TXD for normal communication.During normal communication, the TXD itself is always connected to the RXD of the device!
Self receiving and spontaneous: During normal communication, the RXD is connected to the TXD of other devices.
Therefore, if you want to receive data sent by yourself, as the name suggests, it means that your own TXD is directly
connected to the RXD to test whether its transmission and reception are normal. This is a fast and simple testing method.
When a problem occurs, the first step is to perform this test to determine whether the product is faulty. Also known as loop testing.
Level logic:
TTL level: Typically, data is represented in binary format, with+5V equivalent to logic "1" and 0V equivalent to logic "o",
known as TTL signal system. It is a positive logic RS232 level: using -12V to -3V, equivalent to logic "O", and+3V to+12V,
equivalent to logic "1", it is a negative logic
Product Description:

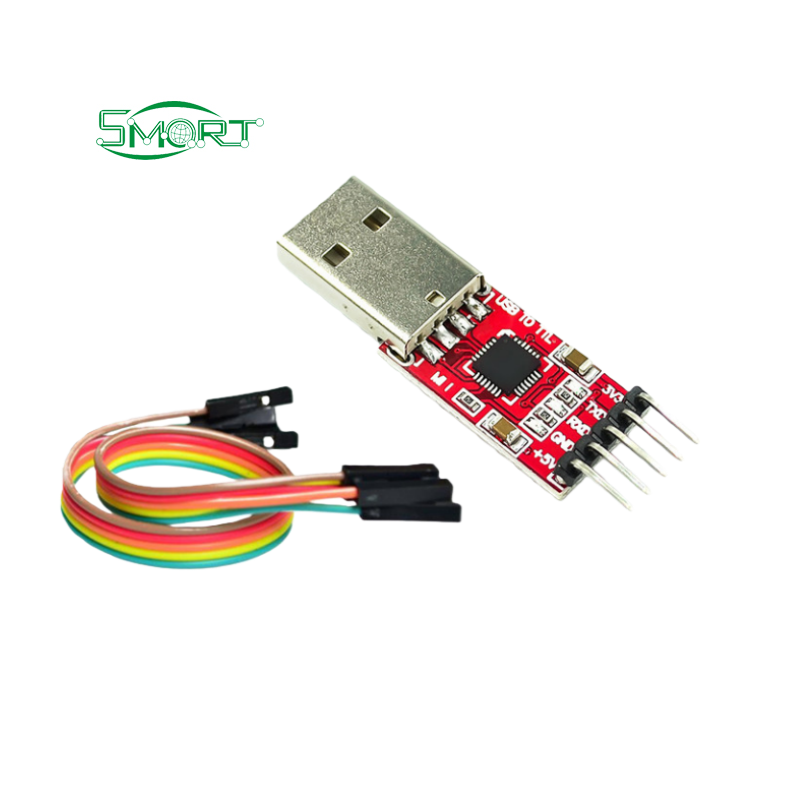

1. The main chip is CP2102, which generates a virtual serial port after installing the driver
2. USB power supply, with output interfaces including 3.3V (<40mA), 5V, GND, TX, RX, signal pin level of 3.3V, positive logic3. Onboard status indicator light and transceiver indicator light. After correctly installing the driver, the status indicator
light will remain on, and the transceiver indicator light will flash during communication. The higher the baud rate, the lower the brightness.
4. Supports baud rates between 300bps and 1Mbps.
5. Communication format support:
1) 5, 6, 7, 8-bit data bits;
2) Support 1, 1.5, and 2 stop positions;
3) Odd, even, mark, space, none verification
6. Supports operating systems: Windows Vista/xp/Server 2003/200, Mac OS-X/OS-9, Linux
7. The USB head is male and can be directly connected to a computer's USB port 8. SMT components are produced using SMT technology, ensuring stable quality9. Volume without USB head: (mm)
