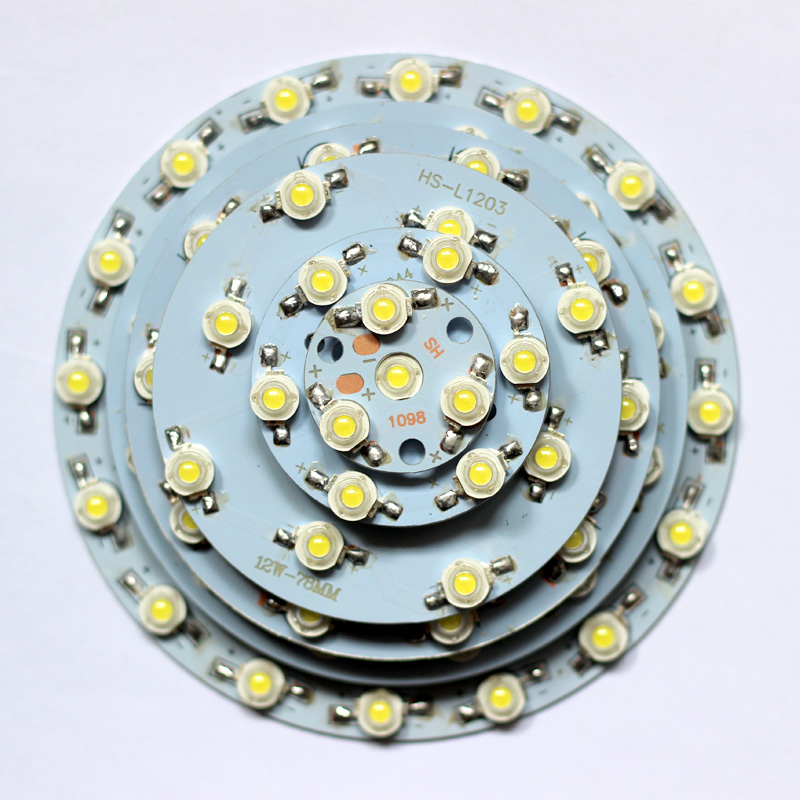

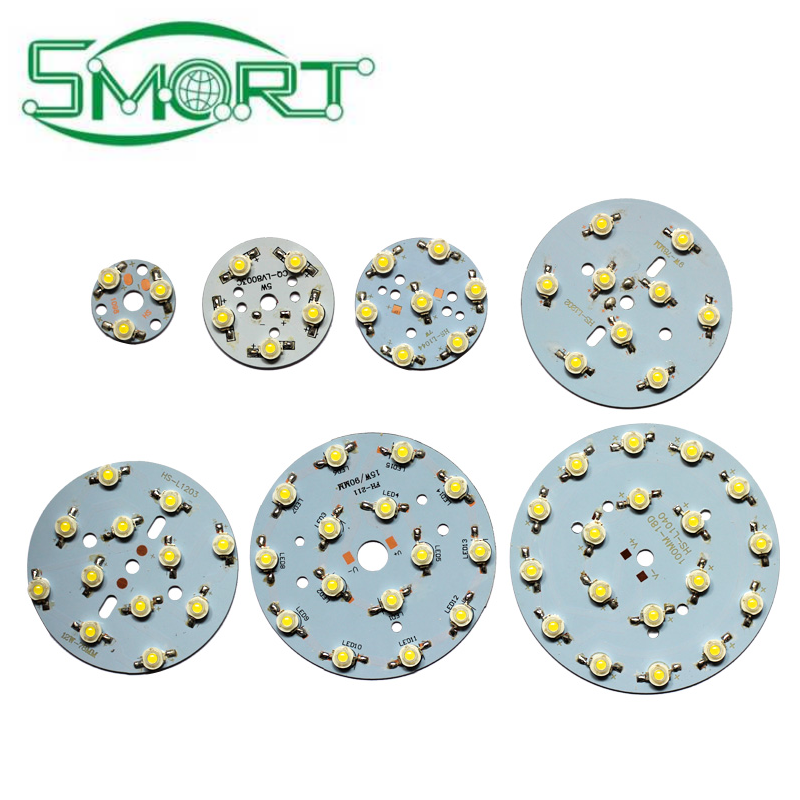

Shenzhen custom assembly LED PCB Board for wholesales LED Light

shared：
Products Description


Product Parameters
【Specification】1W
【Light source power】1W(1pcs) 【Rated current】300mA 【Rated voltage】3.2v-3.4v 【Brightness】110Lm-120Llm 【Light source color】 White light:6000-6500K Warm white light: 3000-3500K 【Theoretical life】50000 hours

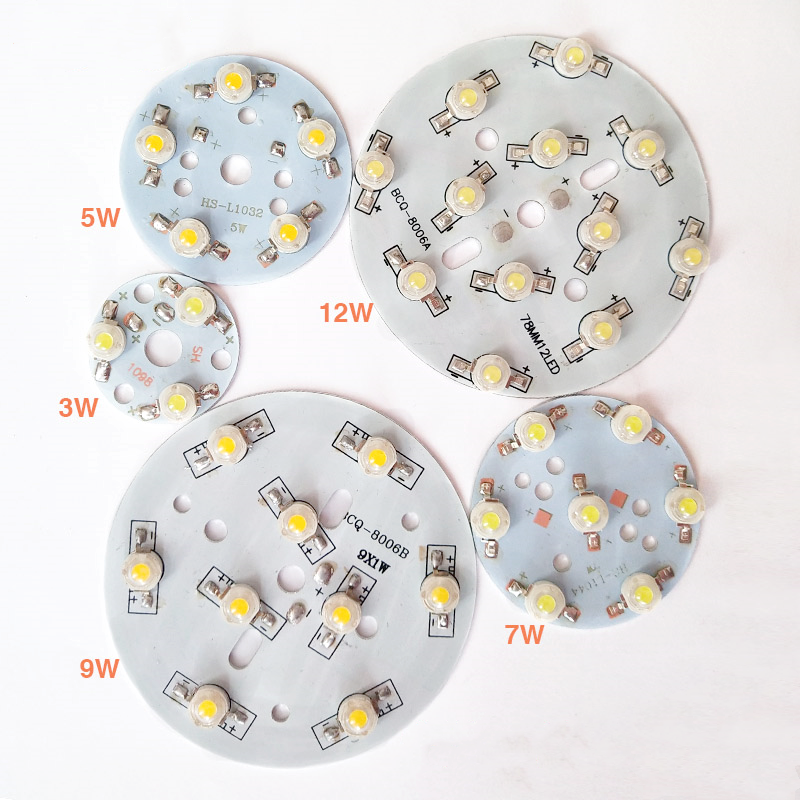

Product Parameters
【Specification】3W
【Light source power】3W(3pcs)
【Rated current】300mA
【Rated voltage】9v-10v
【Brightness】110Lm-120Llm
【Light source color】
White light:6000-6500K
Warm white light: 3000-3500K
【Theoretical life】50000 hours


Product Parameters
【Specification】5W 【Light source power】5W(5pcs) 【Rated current】300mA 【Rated voltage】15v-16v 【Brightness】110Lm-120Llm 【Light source color】 White light:6000-6500K Warm white light: 3000-3500K 【Theoretical life】50000 hours


Product Parameters
【Specification】7W 【Light source power】7W(7pcs) 【Rated current】300mA 【Rated voltage】21v-22v 【Brightness】110Lm-120Llm 【Light source color】 White light:6000-6500K Warm white light: 3000-3500K 【Theoretical life】50000 hours


Product Parameters
【Specification】9W 【Light source power】9W(9pcs) 【Rated current】300mA 【Rated voltage】27v-30v 【Brightness】110Lm-120Llm 【Light source color】 White light:6000-6500K Warm white light: 3000-3500K 【Theoretical life】50000 hours



Product Parameters
【Specification】12W 【Light source power】12W(12pcs) 【Rated current】300mA 【Rated voltage】36v-40v 【Brightness】110Lm-120Llm 【Light source color】 White light:6000-6500K Warm white light: 3000-3500K 【Theoretical life】50000 hours


Product Parameters
【Specification】15W 【Light source power】15W(15pcs) 【Rated current】300mA 【Rated voltage】45v-50v 【Brightness】110Lm-120Llm 【Light source color】 White light:6000-6500K Warm white light: 3000-3500K 【Theoretical life】50000 hours


Product Parameters
【Specification】18W 【Light source power】18W(18pcs) 【Rated current】300mA 【Rated voltage】54v-60v 【Brightness】110Lm-120Llm 【Light source color】 White light:6000-6500K Warm white light: 3000-3500K 【Theoretical life】50000 hours


Product Parameters
【Specification】21W 【Light source power】21W(21pcs) 【Rated current】300mA 【Rated voltage】63v-68v 【Brightness】110Lm-120Llm 【Light source color】 White light:6000-6500K Warm white light: 3000-3500K 【Theoretical life】50000 hours


Product Parameters
【Specification】24W 【Light source power】24W(24pcs) 【Rated current】300mA 【Rated voltage】75v-80v 【Brightness】110Lm-120Llm 【Light source color】 White light:6000-6500K Warm white light: 3000-3500K 【Theoretical life】50000 hours
About Customization : Please kindly send us your gerber file and bom list for quotation ,and please also inform the order quantity
PCB Capacities and Technical Specification
Order Quantity
1-500,000
Layer
1, 2, 4, 6, up to 24 layer
Material
FR-4, High Tg, Isola, Aluminum, Rogers, etc
PCB type
Rigid, flexible, rigid-flexible
Shape
Rectangular, round, slots, cutouts, complex, irregular
Max PCB dimensions
1200mm*600mm
Thickness
0.2~4.0mm, Flex 0.01~0.25''
Thickness tolerance
± 10%
Copper thickness
0.5-6 oz
Copper thickness tolerance
± 0.25oz
Surface finish
HASL, LF HASL, Imm Gold, Imm Silver, OSP etc
Solder mask
Green, red, white, yellow, blue, black, orange, purple
Silk screen
White, black
Silk screen min line width
0.006'' or 0.15mm
Min drill hole diameter
0.01'', 0.1mm or 10 mil
Min trace/gap
0.075mm or 3mil
PCB cutting
Shear, V-score, tab-routed
PCBA Capabilities
Turnkey PCBA
PCB+components sourcing+assembly+package
Assembly details
SMT and Thru-hole, ISO SMT and DIP lines
Lead Time
Prototype : 15 work days. Mass order : 20~25 work days
Testing on products
Testing jig/mold , X-ray Inspection, AOI Test, Functional test
Quantity
Min quantity : 1pcs. Prototype, small order, mass order, all OK
Files needed
PCB : Gerber files(CAM, PCB, PCBDOC)
Components : Bill of Materials(BOM list)
Assembly : Pick-N-Place file
PCB Panel Size
Min size : 0.25*0.25 inches(6*6mm)
Max size : 1200*600mm
Components details
Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
Component package
Cut Tape, Tube, Reels, Loose Parts
PCB+ assembly process
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave
Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing
Company Profile
Exhibition
Hong Kong Electronics Fair is the world's largest comprehensive electronic products trade exhibition and a professional exhibition in the field of electronic components, components and production technology.

From October 13 to October 16, 2019, our company, as an exhibitor, attended the Hong Kong Electronics Fair (Autumn Edition).
Product packaging
There are many forms of packaging. The following is for reference only
Shipping
FAQ
1.Which type of PCBs do you expert in?
We are specialized in producing Singe-side PCB,Double-side PCB, Multilayer PCB,Aluminium PCB,Spray Tin PCB,Immersed Gold PCB, etc.
2.What is your Lead time?
Lead time is usually punctual here, usually 5-10 days for PCB sample, 10-15 days for mass production. For some special
situation,we can also advise customer in advance to avoid any inexpectation or loss at customer side.
3.What is your testing policy and how you controle the quality?
For sample, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by fixture, this will be more
faster. Due to there’s many steps to PCB production, we usually do inspection after every step.
4.What is your package?
With Inner vacuum package and out carton.
5.PCB shipment?
This is depend on customer, sometimes we ship through our forwarder, who is also the agency of DHL, TNT, UPS, Fedex, and so on.Our
forwarder can provide too much better freight cost than we get directly from those express enterprise.
6.What is your produce ability?
Our ability is average 30,000 square meters per month.
7.I only have the pcb sample, not pcb file, can you produce it for me?
Yes, we can copy file based on your sample, this file names gerber, and production then is accorded to gerber file.
8.Can you design gerber file?
We can design gerber file if customer can provide us schematic, schematic sample can also be provided if customer want.
9.What kind of PCB file format can you accept for production? What CAM software do you use?
We accept Gerber file for production. CAM350, GENESIS, UCAM, GC-CAM, V-2000.
10.Will you allow me to put several part number together into one panel?
Yes, this is usually happen in we factory, this way can help customers reduce some cost and to a certain degree, it can help reduce some assembly cost.
11.What is your minimum order quantity?
We have no limitation on MOQ, prototype, medium volume and large volume are all acceptable.
12.Will RoHS Lead-Free Custom Spec. Boards be marked with lead-free symbol?
Yes, can, but need customer to specify this requirement in file.
13.Are my design files safe when I submit them to you for manufacturing?
Any customer’s file will be protected very well here in our factory and we will not let any third party know. We can sign NDA with you.
